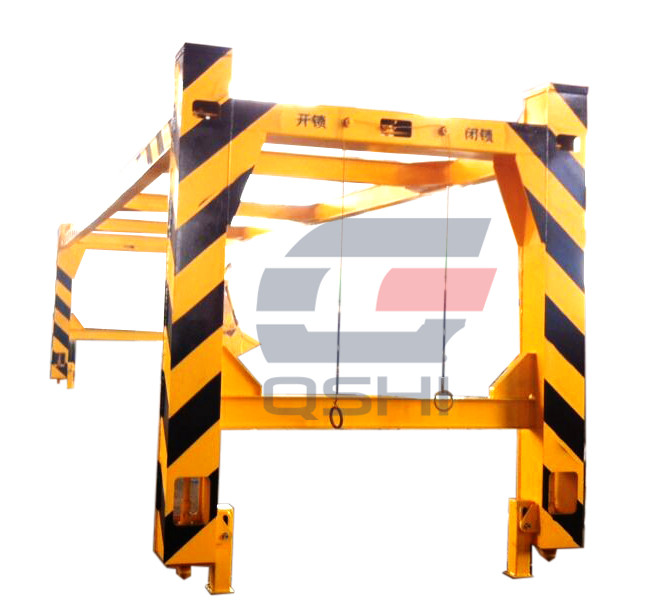

手动超高架
当前位置: 首页 / 产品展示 > 手动超高架

Short Description:


INQUIRY NOW 联系我们获取更多信息

我们能为您提供更多的选择方案

MIC banner-2

p-超高架图纸


适用于操作标准20’集装箱

For operation with ISO standard 20containers

适用于操作标准40’集装箱

For operation with ISO standard 40containers

额定起重量Rated lifting load

41t

额定起重量Rated lifting load

50t

自重Dead weigh

2.8t

自重Dead weigh

3.5t

有效高度Available height

1800mm

有效高度Available height

1800mm

应用范围Application

应用于装卸顶部开口的ISO标准集装箱及超高货物的台架;也应用于装卸平板架,其必须符合ISO标准的20’集装箱接口及尺寸Handing   of open top ISO container and flat racks having overheight loads,also handles   pallets with 20’ISO fittings and dimensions

应用范围Application

应用于装卸顶部开口的ISO标准集装箱及超高货物的台架;也应用于装卸平板架,其必须符合ISO标准的40’集装箱接口及尺寸Handing   of open top ISO container and flat racks having overheight loads,also handles   pallets with 40’ISO fittings and dimensions

驱动Actuation

本超高架与吊具的连接,分离是由吊具的转销来完成的;超高架转销的开闭锁动作由人工操作完成。

With help of the spreader twistlocks,the   overheight can be safe attached/detached to the spreader.Actuation of the   overheight twistlocks is handled by the terminal people.

驱动Actuation

本超高架与吊具的连接,分离是由吊具的转销来完成的;超高架转销的开闭锁动作由人工操作完成。

With help of the spreader twistlocks,the   overheight can be safe attached/detached to the spreader.Actuation of the   overheight twistlocks is handled by the terminal people.
