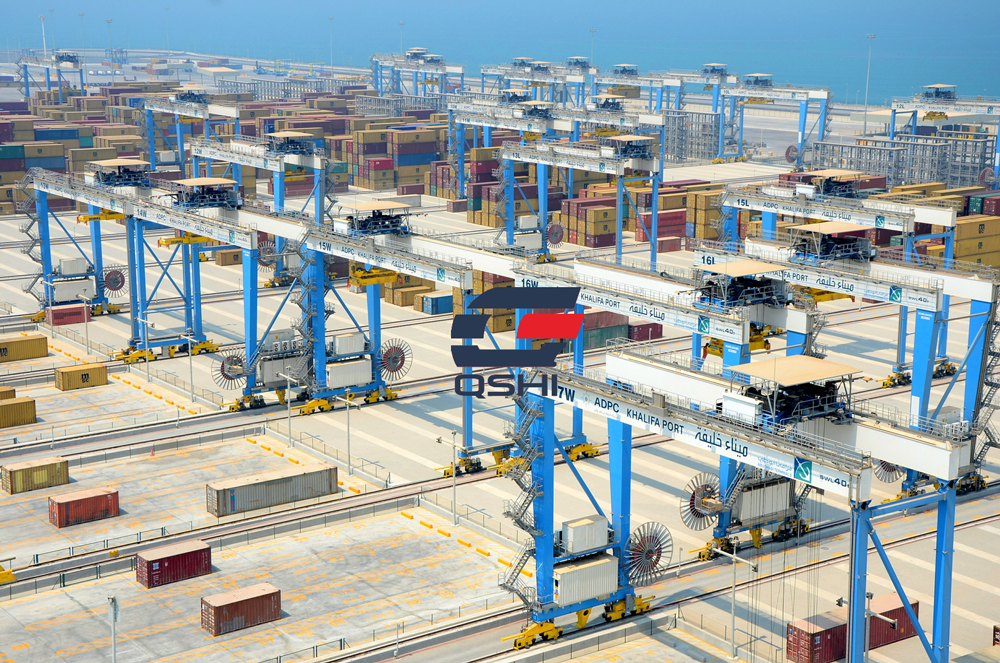

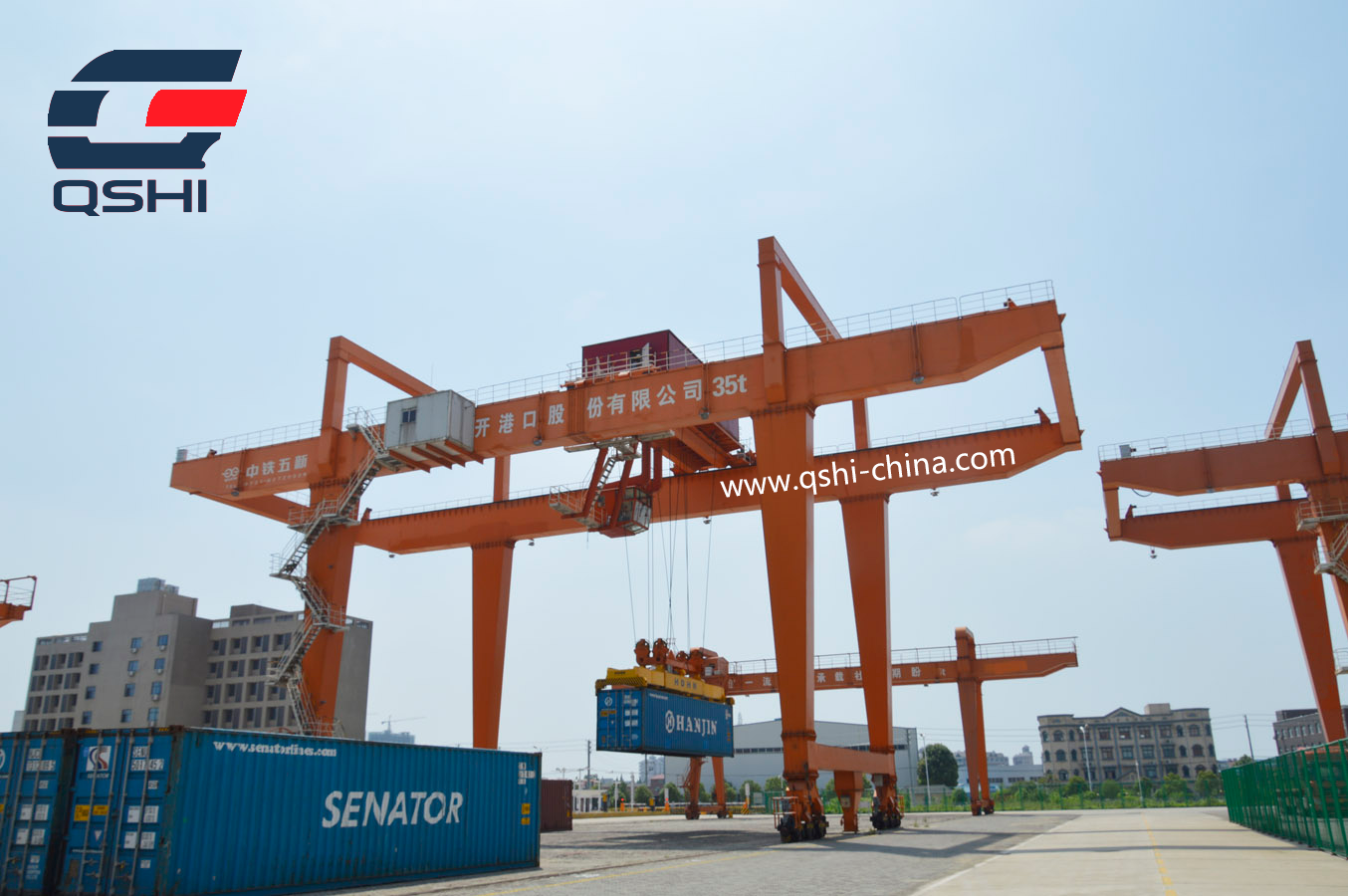

轨道式集装箱门式起重机
轨道式集装箱门式起重机是一种专业化的集装箱装卸设备，广泛应用于沿海港口、内河港口、铁路中转和化工堆储等集装箱堆场装卸作业。具有技术性能优、作业效率高、节能环保、使用成本低、场地利用率高、投资省、使用寿命长、操作维护方便等优势。

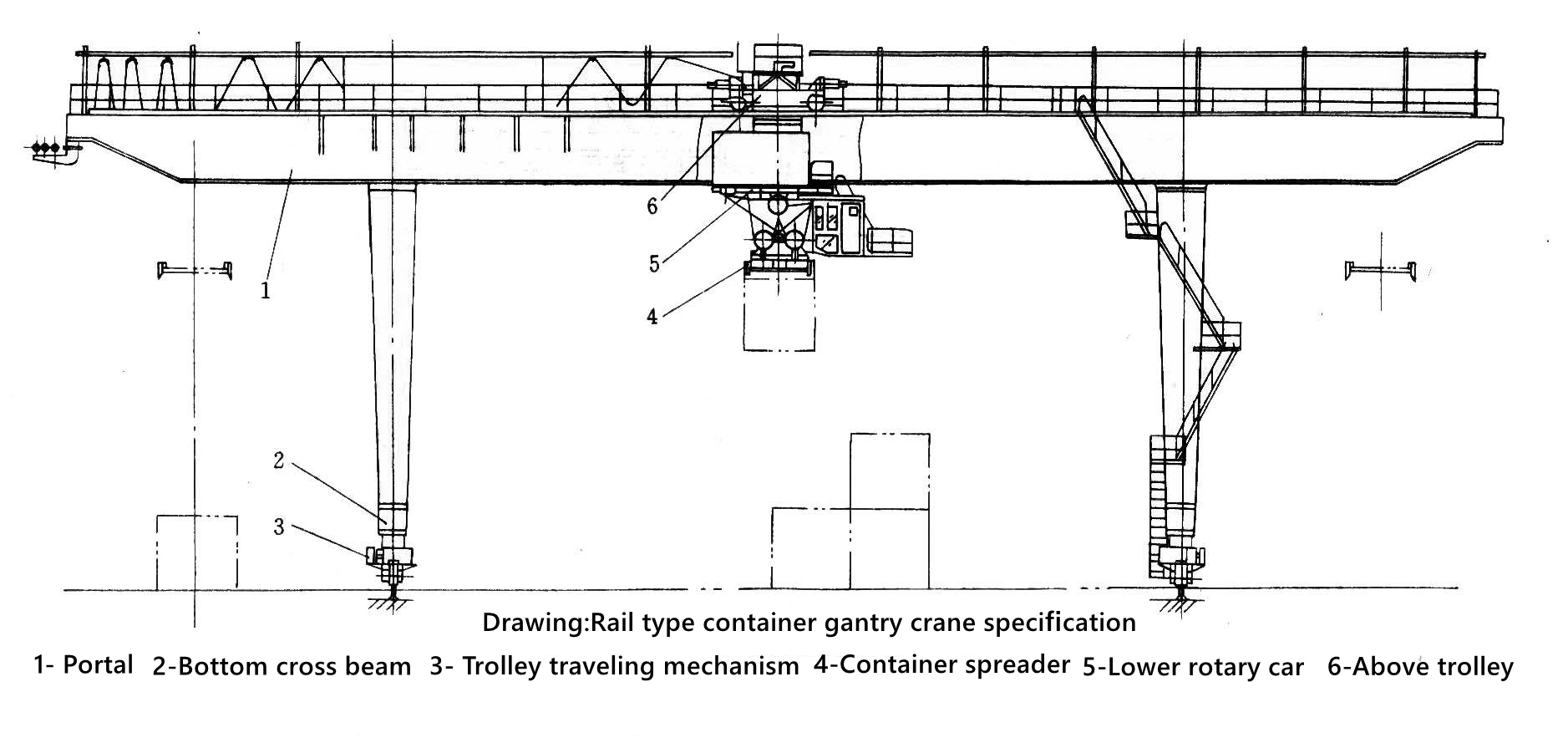

轨道式集装箱门式起重机性能参数
NO. | 主要性能参数 | JMQ07-33 | J0200 30．5t | JMQ40-25 | JMG 4021 | NOELL 40t | MJ02 40．5t |
1 | 额定起重量(吊具下)(t) SWL(Under spreader) | 7.3 | 30.5(吊钩下38) 30.5(Under hook 38) | 35 | 30.5(吊钩下40.5) 30.5(Under hook 40.5) | 40(吊钩下52) 40(Under hook 52) | 40.5 |
2 | 起升高度H(m) Lifting height | 15.5(轨上)(Above pathway) | 轨面以上10/轨面以下14 Above rail surface 10/ below rail surface 14 | 15.3(轨上) 15.3(Above pathway) | 12.5(轨上) 12.5 (Above pathway) | 9.0 | 18.2 |
3 | 轨距L(m) Gauge | 33 | 10.5 | 25.5 | 21 | 25.5 | 32 |
4 | 基跨B(m) Machine cross | 7.9 | 15.2 | 16 | 16 | 小车行走方向门架净宽16.2m The direction of the trolley walking direction frame is 16.2m | 10.5 |
5 | 车轮数(个) Number of wheels(units) | 24 | 16 | 16 | 16 | ||
6 | 最大轮压(KN) Maximum wheel load | ≤250 | ≤250 | ≤221 | ≤312 | ＜200 | |
7 | 集装箱堆码形式(高度) Container stacking mode(Height) | 堆四过五(空箱作业) Heap four over five (empty box operation) | 堆三过四 Pile three over four | 堆四过五 Heap four over five | 堆三过四 Pile three over four | 堆三 Heap three | 堆五过六 Pile five over six |
8 | 集装箱堆码形式(横向) Container stacking mode(horizontal) | 跨中三列、外伸距15m,内伸距7.5 Three columns across, with an outreach of 15m and an internal extension of 7.5 | 门架一侧外伸距7.5m The gantry has a side extension of 7.5m | 横向总宽33.5m(轨外8m) The total horizontal width is 33.5m (8m outside the rail) | 8(左右各4列)+1(中间车道) Eight(4 columns left and right)+1(Center Lane) | ||
9 | 起升速度(满载/空载)(m/min) Lifting speed(Full load/Empty load) | 20 | 12/24 | 15 | 10 | 20/40 | 30/60 |
10 | 小车速度(m/min) Trolley speed | 38.4 | 60 | 38 | 50 | 100 | 90 |
11 | 大车速度(m/min) Bridge speed | 47 | 27 | 49.5 | 54 | 100 | 60(满载)/120(空载) 60（full load）/120(empty load)
|
12 | 整机质量(t) Machine weight | 108 | 255 | 216 | 274(带负荷) 274（on-load） | 190 |
