Short Description:
All electric double hosit and traditional mobile hydraulic double box hoist compared to electric double box hanger structure is more simple, the total transmission efficiency can reach more than 90%, less energy loss. With high precision, accurate positioning, good synchronization advantages, is a new type of high efficiency, energy saving and environmental protection, in line with the development needs of the modern society of container spreader.
联系我们获取更多信息
我们能为您提供更多的选择方案

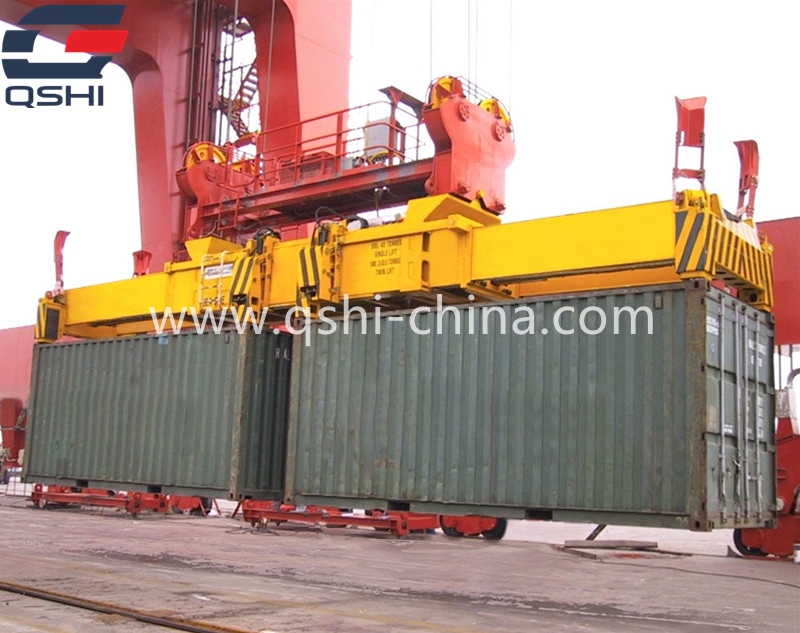

Twin-lift separated spreader is developed in the field of carrying trade in recent years. It is a high efficient container spreader. In addition to all the functions of a conventional telescopic spreader, it is able to lift two 20ft containers at one time and to move them within a certain spacing. This is made for adaptability to 20ft container on the stack-yard, the trailer and the container vessel and thus container handling efficiency is increased greatly. Many modern container terminals prefer this type of spreader.
The structures of the whole spreader are made by high-quality and high-strength steel. The force alalysis is carried out to ensure that the material is used reasonable. It makes the spreader which has high strength, long operating life and light weight, it can adapt to the bad work condition requirements of ports.
【型号/Model：QSHI】 | 总功率 | ≤ 8KW | |||||||||
Total power | |||||||||||
适用于操作 ISO标准 20’ ,40’ , 45’ 和两个 20’ 集装箱 | 防护等级 | IP 55 | |||||||||
For operation with ISO standard 20',40' | ， 45' and twin 20' containers | Precaution class | |||||||||
额定起重量 (同心 /单箱 ) | 50T | 系统工作压力 | 100 /170 bar | ||||||||
S.W.L.(Concentric/Single mode) | Operating pressure of the system | ||||||||||
额定起重量 (偏心 /双箱 ) | 65T | 环境温度 | -20℃ ~+45℃ | ||||||||
S.W.L.(Eccentric/Twin20’mode) | Ambient temperature | ||||||||||
四角吊耳负重 | 16.25t×4 | 【转销形式】 | ISO浮动转销，电动驱 动 | ||||||||
Load of lifting lugs at four corner | Twistlock Mode | ISO floating twistlock, driven by electric | |||||||||
自重 (吊具部分 ) | 【伸缩驱动方式】 | 电动链传动The telescopic system is driven by electric | |||||||||
13t | |||||||||||
Self-weight (spreader) | Telescopic Mode | ||||||||||
伸缩 (20’ 到 45’ ) | 【导板装置】 | 可拆卸式导板 | |||||||||
~ 35S | |||||||||||
Expansion time (20’ to 45’ ) | Flippers Device | knock-down flipper | |||||||||
转销 ( | 90°) | 【中间转销箱】 | 油缸垂直运动实现升降 | ||||||||
Twistlock | rotation through 90 | < 1 S | |||||||||
M id d le T w i st l o c k | Raised and lowered by vertical movement of hydraulic cylinders | ||||||||||
° | |||||||||||
H o usin g s | |||||||||||
电源电压 /频率 | AC 380V(3P)/50HZ | 油缸水平运动实现平移 | |||||||||
Power voltage/ Frequency | (可选 / as agreed) | Moved by horizontal movement of hydraulic cylinders. | |||||||||
控制电压 | DC 24V | 【适用】 | 轨道吊，轮胎吊 | ||||||||
Control voltage | Application | RMG, RTG | |||||||||
