QSHI1700 Container Revolver

 Description:

QSHI1700 series container revolvers are designed for loading and unloading bulk cargo containers.
QSHI series of flip spreaders can be hung on ship-to-shore cranes, gantry cranes, RTG, RMG and other lifting equipment.

It allows bulk cargo containers to be tilted and tilted to one side by flipping the central swinging  mechanism of the spreader
so that bulk cargoes, such as grain, coal, iron ore, etc., can unload from the bulk container to the vessel or other transfer space.

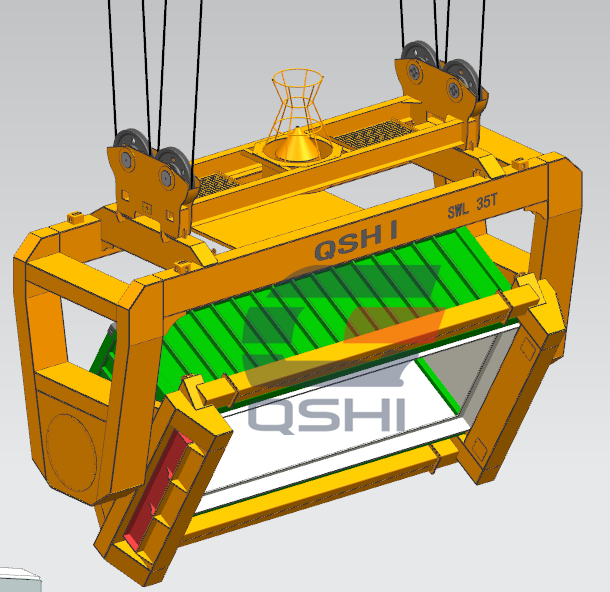

The QSHI 100 series consists of an external frame attached to the crane hooks. The internal frame is connected to the bulk container by means of a reel, in the same way as a fixed-length spreader connects the containers.
The inner frame and the outer frame are connected by a slewing bearing, and the inner frame is driven to rotate 360° by means of a drive motor installed in the outer frame.

The QSHI 1700 series can handle up to 35 tons and 40 tons of safe work load capacity (SWL).
It is equipped with a high-performance hydraulic power unit to operate the ISO floating twistlock and flipping drive.
It is equipped with fixed and movable container  anti-overturn  devices.

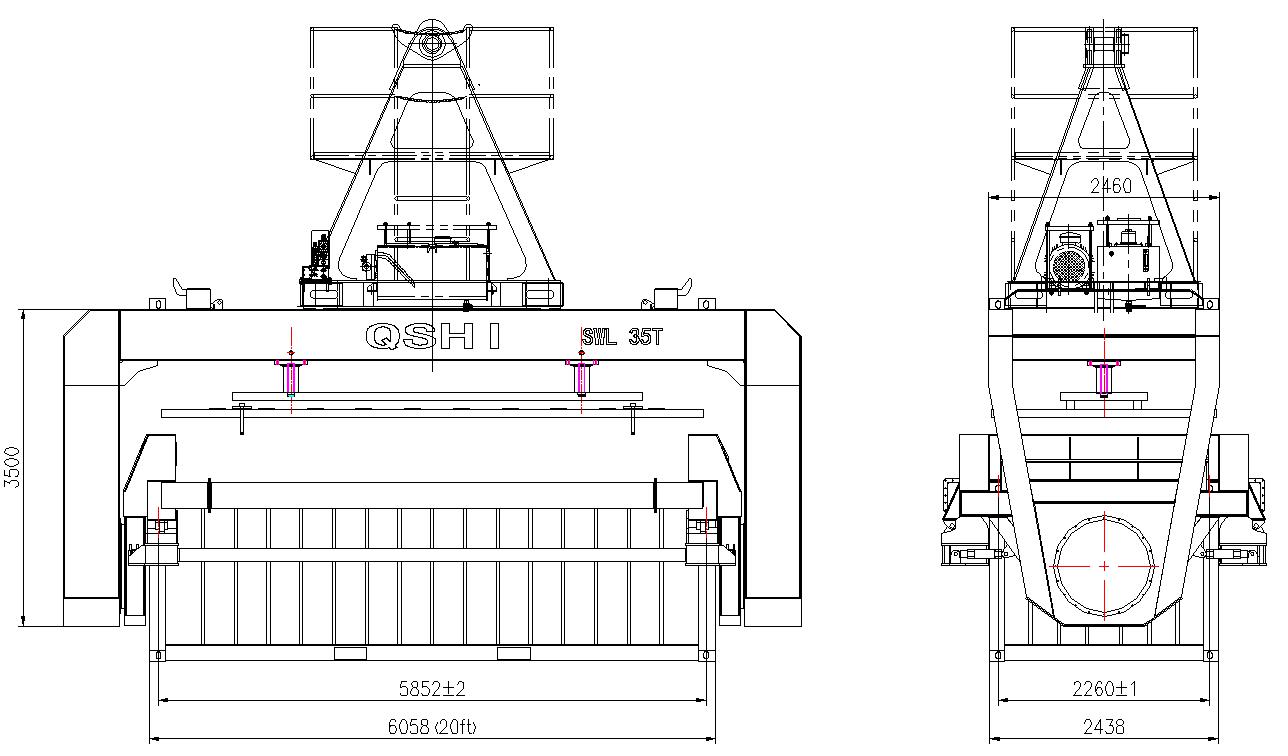

Technical Parameter：
(for reference, subject to specific drawing)
