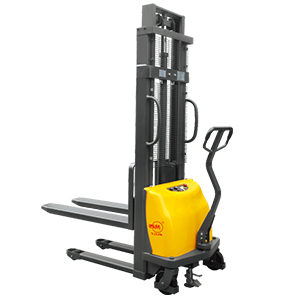

Semi-electric Stacker

current location： Home / Product > Electric Stacker

$content.description

联系我们获取更多信息

我们能为您提供更多的选择方案

Advantages:

• Handle-castor chain assist steering system greatly reduces the labor intensity.

• Equipped with explosion-proof valve, against of sudden drop of forks and prevent operator from harm.

• Over-discharge protection device greatly prolongs the battery use time.

• Overall type adjustable forks,which can be lowered to the same level of the legs.

•Chain connect side wheel and handle, easy for steering.

•Easy operating foot brake.

CDD10B-lll

Model		Overall forks		Adjustable forks
Model		CDD10B-III	CDD15B-III	CDD10B-III	CDD15B-III
Load capacity	Q(kg)	1000	1500	1000	1500
Load centre distance	c(mm)	500	500	500	500
Load distance, centre of drive axle to fork	x(mm)	802	802	745	745
Tyre size , front	mm	Φ180×50	Φ180×50	Φ180×50	Φ180×50
Tyre size , rear	mm	Φ80×70	Φ80×70	Φ80×70	Φ80×70
Wheels, number front rear(x= driven wheels)		2/2	2/2	2/2	2/2
Fork height, lowered	h₁₃	90	90	90	90
Height, mast lowered	h1	2090/1840/2090/2240/2340		2090/1840/2090/2240/2340
Max. lift height	h₃(mm)	1600/2500/3000/3300/3500		1600/2500/3000/3300/3500
Height, mast extended	h₄(mm)	2090/3060/3560/3860/4060		2090/3060/3560/3860/4060
Overall length	l₁(mm)	1678	1740	1735	1835
Length to face of forks	l₂(mm)	608	670	665	765
Overall width	b₁(mm)	800	800	955	955
Fork dimensions	s/e/l (mm)	60/170/1070	60/170/1070	60/142/1070	60/142/1070
Width overall forks	_b5(mm)	570/695	570/695	295-930	295-930
Aisle width for pallets 800×1200 lengthways	Ast(mm)	2267	2347	2267	2347
Turning radius	W_a(mm)	1425	1505	1425	1505
Lift speed , laden/unladen	m/s	0.07/0.09	0.07/0.09	0.07/0.09	0.07/0.09
Lowering speed , laden/unladen	m/s	0.1/0.13	0.1/0.13	0.1/0.13	0.1/0.13
Service brake		mechanical	mechanical	mechanical	mechanical
Battery voltage , nominal capacity K₅	V/Ah	12/120	12/120	12/120	12/120
Battery weight	kg	45	45	45	45
Battery dimensions l/w /h	mm	360x170x250	360x170x250	360x170x250	360x170x250
Service weight (with battery)	kg	355/410/445/475/495	405/475/480/530/550	385/440/475/505/525	435/510/535/560/580
