●Compact design with strong steel construction.
●High quality steel mast ensures rigidity and durability.
●Adjustable forged forks.
●Screw release allows forks to descend.
●Foot operated lift for raising loads.
●With folded type foot pedal.
●Metal grid protects user from lift chains.
●With safety wheel guard and brake system to ensure safety during operation.

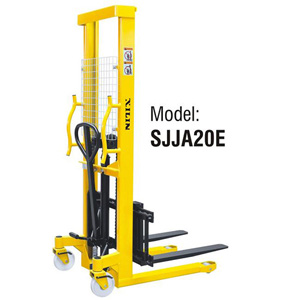

MODEL | SJJA20E | SJJA20E-III | |
Load capacity/rated load | Q(kg ) | 2000 | 2000 |
Load centre distance | c(mm) | 400 | 400 |
Fork height, lowered | h13(mm) | 90 | 90 |
Height, mast lowered | h1(mm) | 2085 | 2085 |
Max. lift height | h3(mm) | 1500 | 1500 |
Height, mast extended | h4(mm) | 2085 | 2085 |
Overall length | l1(mm) | 1386 | 1482 |
Overall width | b1(mm) | 1000 | 830 |
Fork dimensions | s/e/l(mm) | 32/120/900 | 60/166/900 |
Width overall forks | b5(mm) | 250~950 | 350-710 |
Ground clearance, laden, below mast | m1(mm) | 25 | 20 |
Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2050 | 2166 |
Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2040 | – |
Turning radius | Wa (mm) | 1250 | 1250 |
Lift speed,laden/unladen | mm/time | 18/20 | 18/20 |
Lowering speed,laden/unladen | mm/s | Manual control | Manual control |
Service weight | kg | 292 | 260 |
