Advantages:
•Using Ruyi self developed rear wheel driven design, with stable quality, small turning radius, and very good pass through abilities.
• Rated capacity is 1500kg with side shift, all panels use steel plate with compact appearance and good durability.
• All panels and covers are made by steel, they are in good durability.
• With Sideway battery moving system, it is easy for battery changing.
• Two lifting cylinder on both side of mast, ensure good visibility and high stability.
• Using rubber wheel with good shock proof, low noise suitable for indoor and outdoor use on different ground.
• Rear driving system, smart design with small turning radius and goods pass through, have good performance.
• Use AC motor without brush, free of maintenance.
• High gradeability up to 10% with full laden.
• The electric brake is used as the parking brake, which is easy to operate and safe.
• Use hydraulic power steering is for light steering, have the function of steering priority.
• Have option of cold-storage, full AC control system.

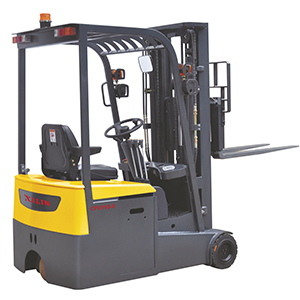

MODEL | CPD15-S | |
Drive | Rear Wheel Drive | |
Operation type | Seated | |
Capacity/rated load | Q(kg) | 1500 |
Load centre distance | c(mm) | 500 |
Load distance, centre of drive axle to fork | x(mm) | 170 |
Wheelbase | y(mm) | 1348 |
Service weight(without battery) | Kg | 2500 |
Axle loading, front/rear | Kg | 3280/710 |
Axle loading, unladen font/rear(with max battery) | Kg | 975/1525 |
Tyre size, front | super elastic solid tires | 305×140 |
Tyre size, rear | super elastic solid tires | 285×160 |
Wheels, number front | 2 | |
Wheels, number rear | 1 | |
Tread, front | b10(mm) | 912 |
Tread,rear | b11(mm) | 0 |
Tilt of mast/fork carriage forward | 。 | 2 |
Tilt of mast/fork carriage backward | 5 | |
Height, mast extended | h1 (mm) | 1980(3m) |
Free lift | h2(mm) | option |
Lift height | h3(mm) | 2500-5600 |
Height, mast extended | h4(mm) | 3500-6600 |
Overall width | b1(mm) | 1055 |
Fork thickness | s(mm) | 35 |
Fork width | e(mm) | 100 |
Fork length | l(mm) | 950(1070) |
Fork carriage din 1573, calss/type A,B | A | |
Fork-carriage width | b3(mm) | 680 |
Ground clearance, laden, below mast | m1(mm) | 68 |
Ground clearance, centre of wheelbase | m2(mm) | 68 |
Aisle width for pallets 800×1200 crossways | Ast(mm) | 3050 |
Aisle width for pallets 800×1200 lengthways | Ast(mm) | 3150 |
Turning radius | Wa(mm) | 1550 |
Travel speed, ladn/unladen | km/h | 6.8/7 |
Lift speed, laden/unladen | mm/s | 100/150 |
Climbing capacity, laden/unladen | % | 10/10 |
System pressure | bar | 140 |
Battery voltage | V | 24 |
Battery capacity | Ah | 320(400) |
Battery weight | kg | 300 |
Sound level at the driver’s ear acc.to din 12053 | Db(A) | 68 |
