Advantages:
High stability and safety
Cab design by SIP point , conform to EN- ISO 5353, ensures compartment with great comfort and fatigue- free operating.
Multifunction LCD digital display with digital service hour metre, battery discharge indicator, travel records, error code and warning displays. Provide fast and accurate monitoring truck status.
Mast cylinder lowering with buffering system: shock absorber steering axle with low noise. All of seal kits imported from Japan ( NOK), transmission and working system have low noise.
With regenerative brake in reversing mode and regular brake pedal use, truck can be braked after foot leaving the pedal. reduce operator efforts and improve the brake life.
The optional of third safety pedal to reduce the driving speed while stacking and steering application.
Ergonomics
Wide view mast, clear visibility.
Low height access step with wide steel non slip plate for easy entry and exit.
Cowl-mounted hydraulic levers design offers big operation space.
Adjustable tilt steering column offers the most comfortable operator position.
Seat with safety belt and arm rest (The optional of Grammar or suspension type).
High-friction brake shoes are fee of asbestos.
With reverse mirror, front work light and back work light group.
Easy maintenance
Floor board are easily removed for quick service assess.
Insulated battery cover gas-filled cylinders and easy to maintain.
The lifting motor under the floorboard for easy maintenance.

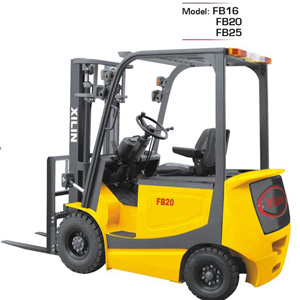

MODEL | FB20 | FB25 | |
Power | electric | electric | |
Operation type | seat | seat | |
Capacity/rated load | Q(kg) | 2000 | 2500 |
Load centre distance | c(mm) | 500 | 500 |
Lift height | h3(mm) | 3000~6000 | 3000~7000 |
Load distance, centre of drive axle to fork | x(mm) | 395 | 498 |
Wheelbase | Y(mm) | 1380 | 1600 |
Service weight (with battery) | kg | 3280 | 4050 |
Axle loading, laden front/rear | kg | 4647/633 | 5764/786 |
Axle loading, unladen front/rear | kg | 1312/1968 | 1620/2430 |
Tyres type | pneumatic/solid | pneumatic/solid | |
Tyre size, front | mm | Ф590×179/Ф577×162 | Ф676×190/Ф657×172 |
Tyre size rear | mm | Ф470×137/Ф461×127 | Ф540×160/Ф527×150 |
Wheels, number front rear(x=driven wheels) | 2×2 / 4X2 | 2×2 / 4X2 | |
Tread, front | b10(mm) | 890 | 970 |
Tread, rear | b11(mm) | 920 | 970 |
Tilt of mast/fork carriage forward/backward | Grad | 6°~12° | 6°~12° |
Height, mast lowered | h1(mm) | 2015-2610 | 2040-3117 |
Free lift | h2(mm) | 0 | 0 |
Height, mast extended | h4(mm) | 4067~7067 | 4067~8067 |
Height of overhead guard(cabin) | h6(mm) | 2065 | 2190 |
Seat height/stand height | h7(mm) | 1043 | 1153 |
Overall length | l1(mm) | 3205 | 3450 |
Length to face of forks | l2(mm) | 2135 | 2380 |
Overall width | b1(mm) | 1100 | 1150 |
Fork dimensions | s/e/l(mm) | 40/120/1070 | 40/120/1070 |
Fork carriage DIN 15173,class/type A,B | 2A | 2A | |
Fork-carriage width | b3(mm) | 1088 | 1160 |
Ground clearance,laden,below mast | m1(mm) | 105 | 115 |
Ground clearance,centre of wheelbase | m2(mm) | 115 | 135 |
Aisle width for pallets 1000×1200 crossways | Ast(mm) | 3500 | 3750 |
Aisle width for pallets 800×1200 lengthways | Ast(mm) | 3300 | 3550 |
Turning radius | Wa(mm) | 1900 | 2150 |
Internal turning radius | b13(mm) | 435 | 505 |
Travel speed, laden/unladen | Km/h | 0~13.5 | 0~13.5 |
Lift speed, laden/unladen | mm/s | 270 | 260 |
Lowering speed, laden/unladen | mm/s | <600 | <600 |
Max. drawbar pull, laden/unladen | N | 12880 | 13550 |
Max.gradeability, laden/unladen | % | 15/20 | 12/15 |
Acceleration time, laden/unladen | s | 0~3 | 0~3 |
Battery voltage,nominal capacity K5 | V/Ah | 48/450 | 48/630 |
Battery weight | Kg | 820 | 1012 |
Battery dimensions l/w/h | mm | 980x660x456 | 1060x816x510 |
Type of drive control | DC/AC | DC/AC | |
Operating pressure for attachments | Mpa | 17 | 16.5 |
Sound level at the driver’s ear acc.to DIN 12053 | dB(A) | <63 | <65 |
